DREAME

LIVO

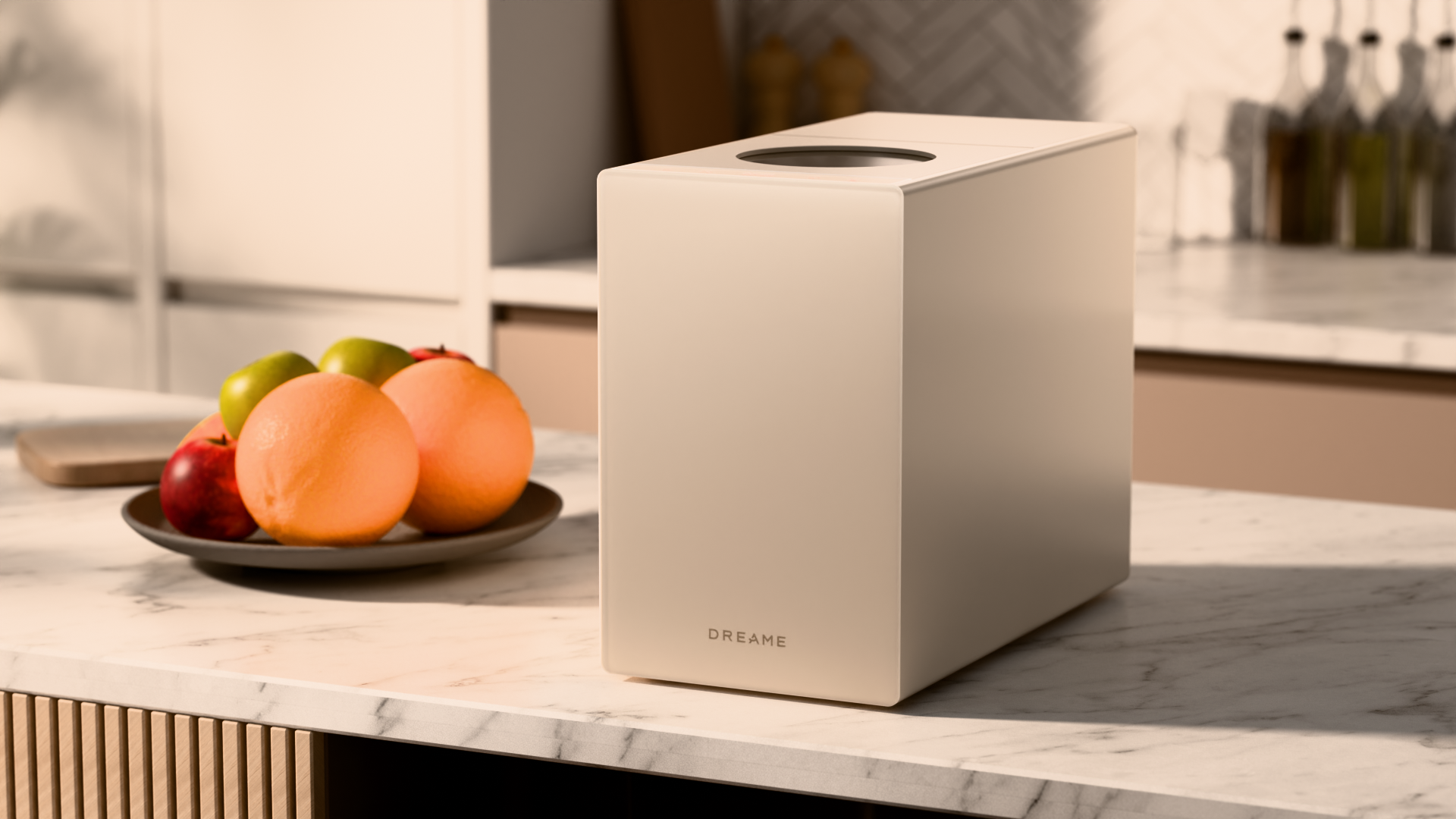

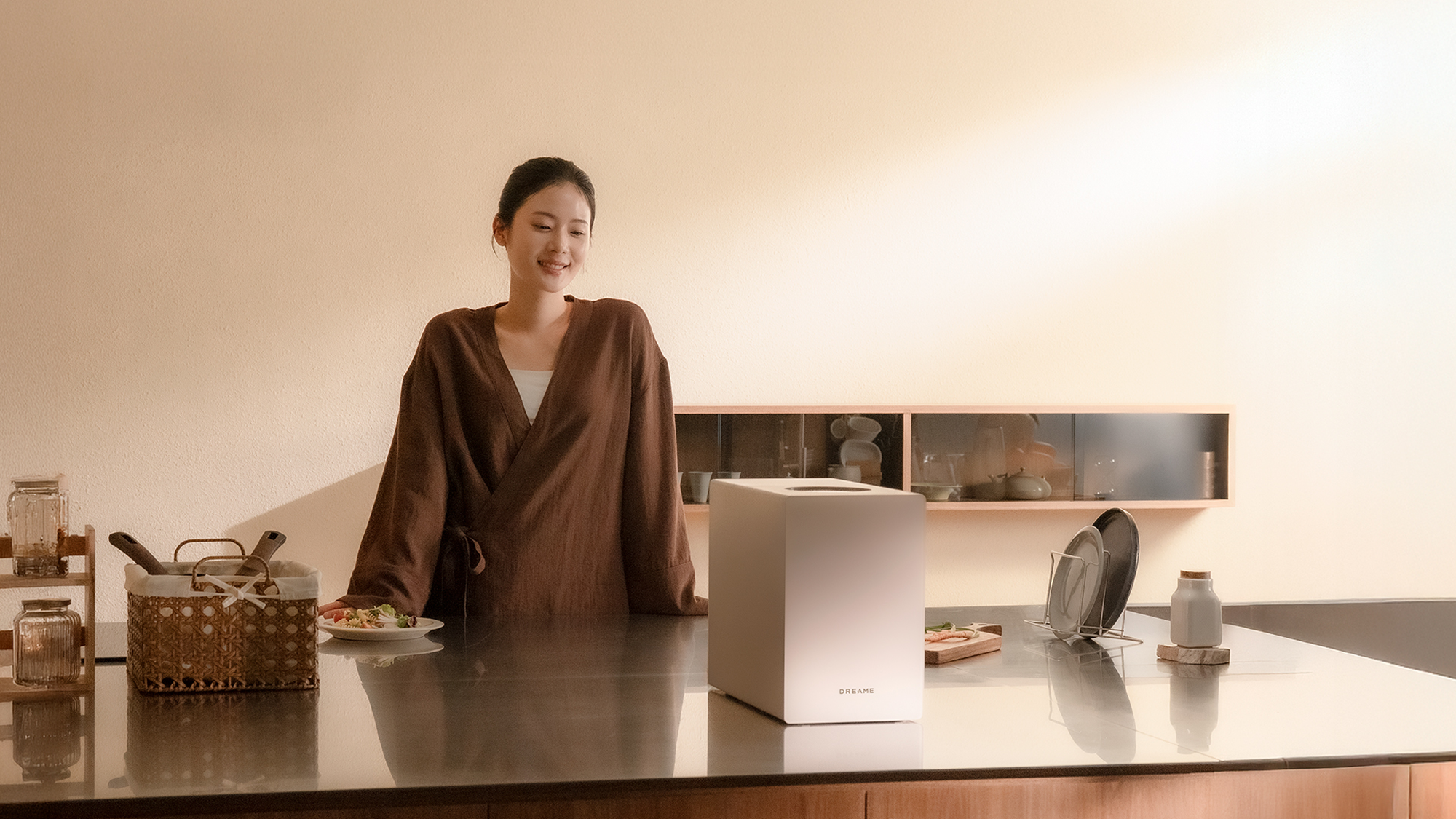

효율의 미학, 우아함의 기술. 완벽한 키친핏의 음식물 처리기. The aesthetics of efficiency, the art of elegance. A food waste disposer crafted for the perfect kitchen fit.
클라이언트Client Dreame Technology
기간Period 2024.09 — 2025.06
역할Role Designer (team of 2) · form, CMF & packaging디자이너 (2인) · 조형·CMF·패키지
클라이언트Client Dreame Technology
기간Period 2024.09 — 2025.06
역할Role Designer (team of 2) · form, CMF & packaging디자이너 (2인) · 조형·CMF·패키지

배경Background

가격이 먼저 정해진 음식물 처리기A disposer with the price fixed first

LIVO는 드리미가 한국 주도로 개발한 카운터탑 음식물처리기입니다. 새 카테고리라 비교 대상이 없었고, 경쟁 제품보다 높은 목표 가격만 먼저 정해져 있었습니다.
스펙으로 벌릴 차이가 없는 상황에서, 가격을 설명하는 것은 성능이 아니라 놓였을 때의 모습이라고 봤습니다.
디자인 방향 제안부터 CMF 검증, 상태 UX 설계, 인증 대응과 양산 F/U까지 전 과정을 진행했습니다.

LIVO is a countertop food waste disposer developed under the Korean team. As a new category it had no reference point, and the only thing fixed in advance was a price above competing products. With no spec-led difference available, what had to justify that price was how it looks where it sits. I ran the whole process — design direction, CMF validation, status UX, certification support and production follow-up.

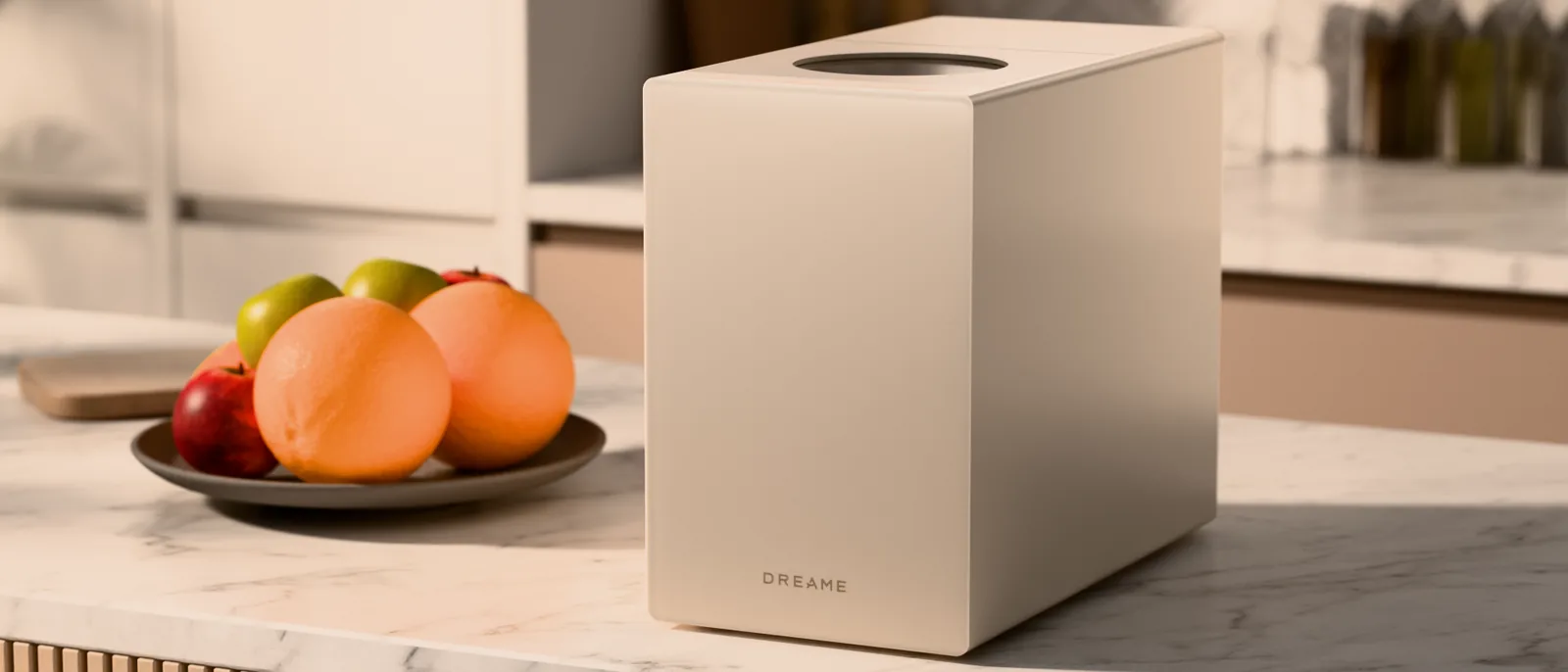

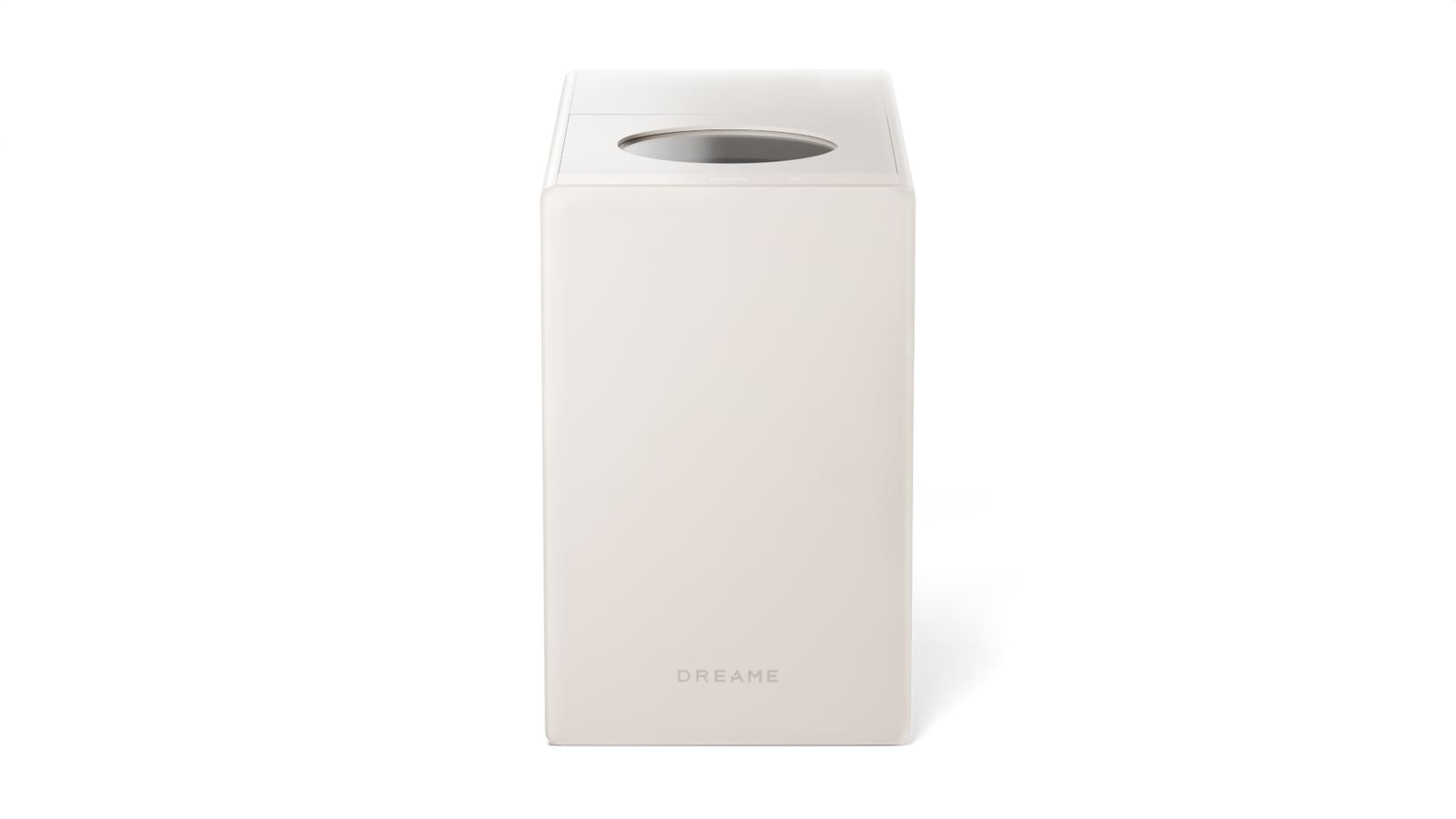

LIVO SF-25LIVO SF-25

맥락Context

제품을 맥락에서 바라보다Seen in its context

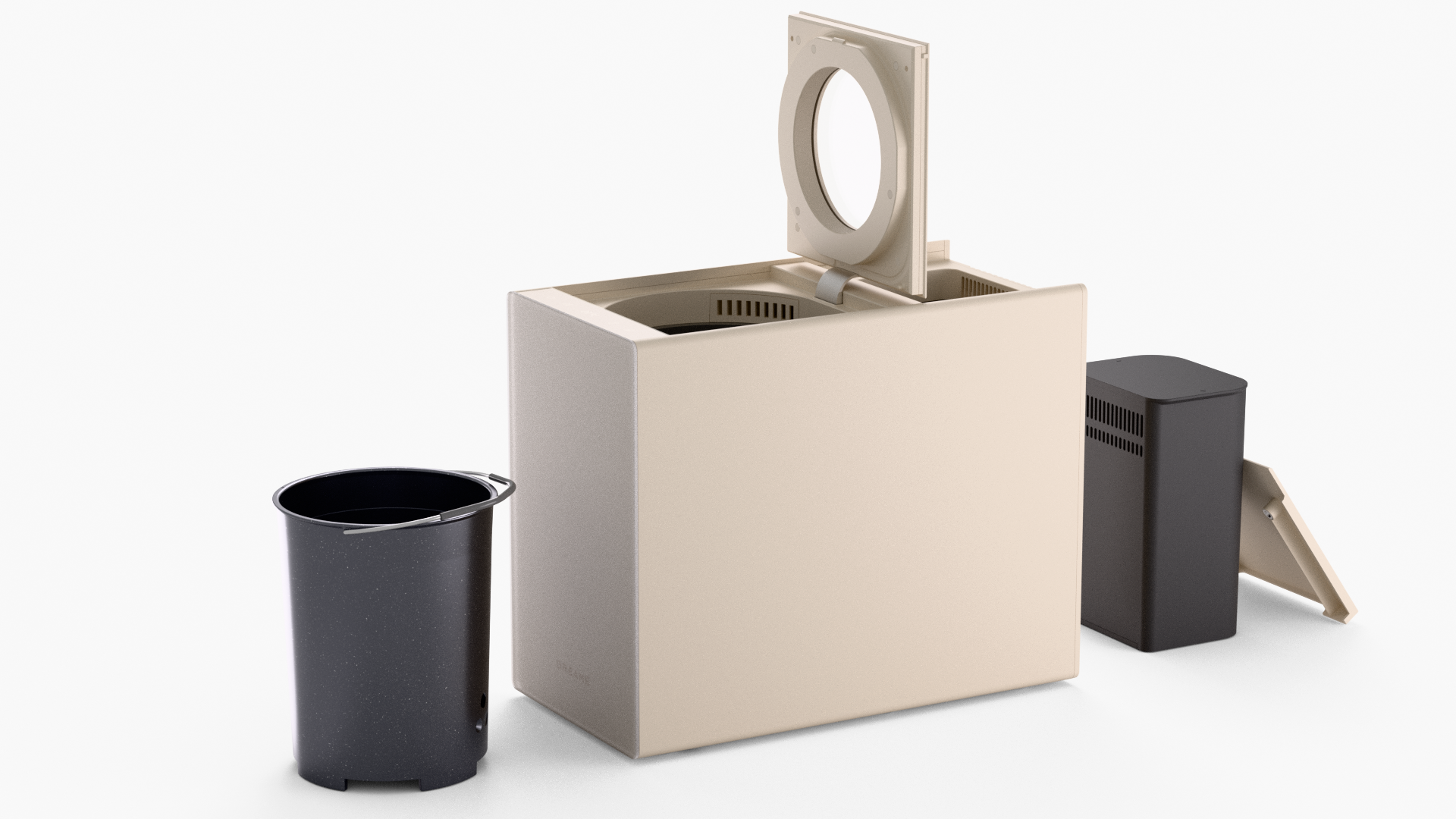

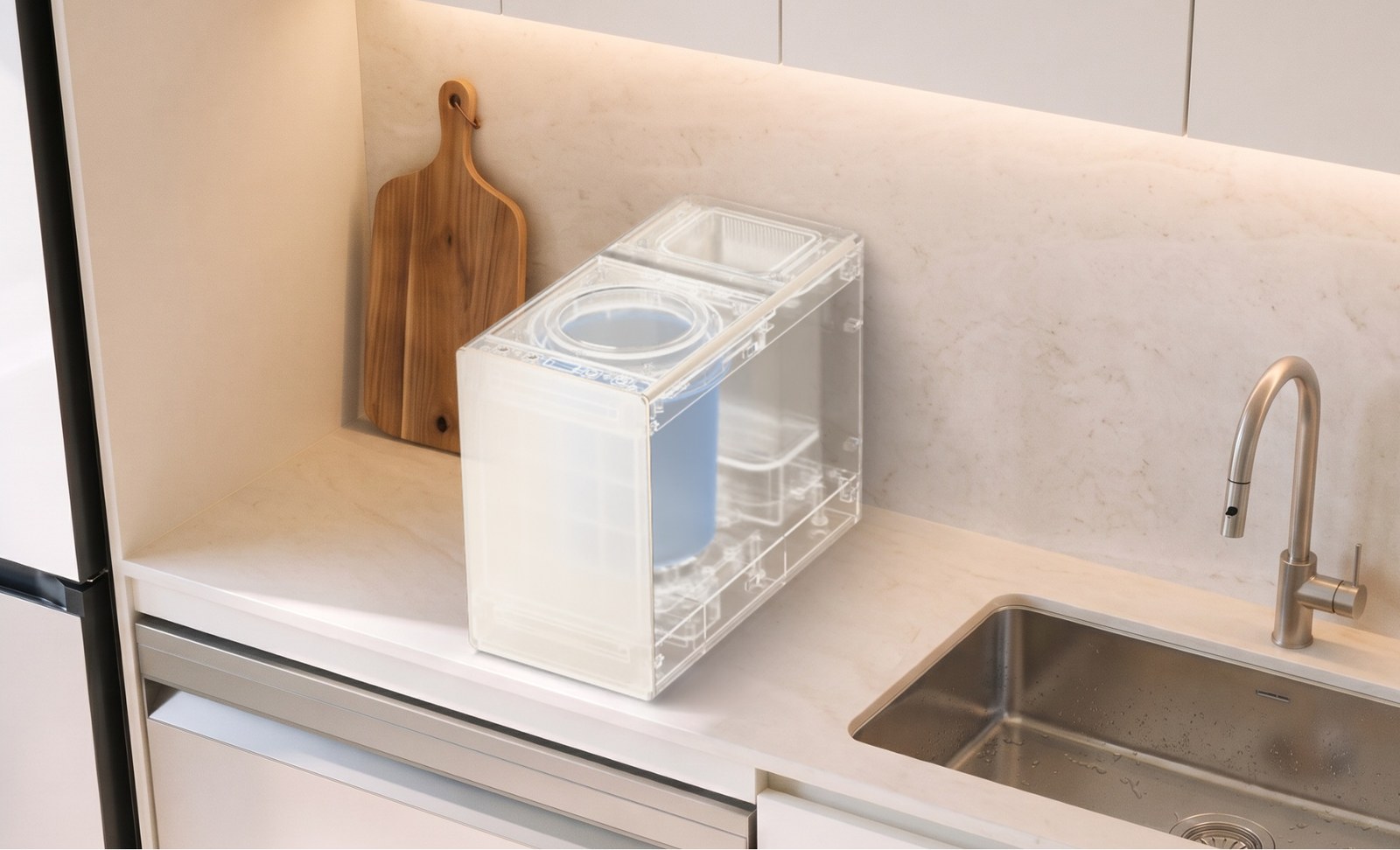

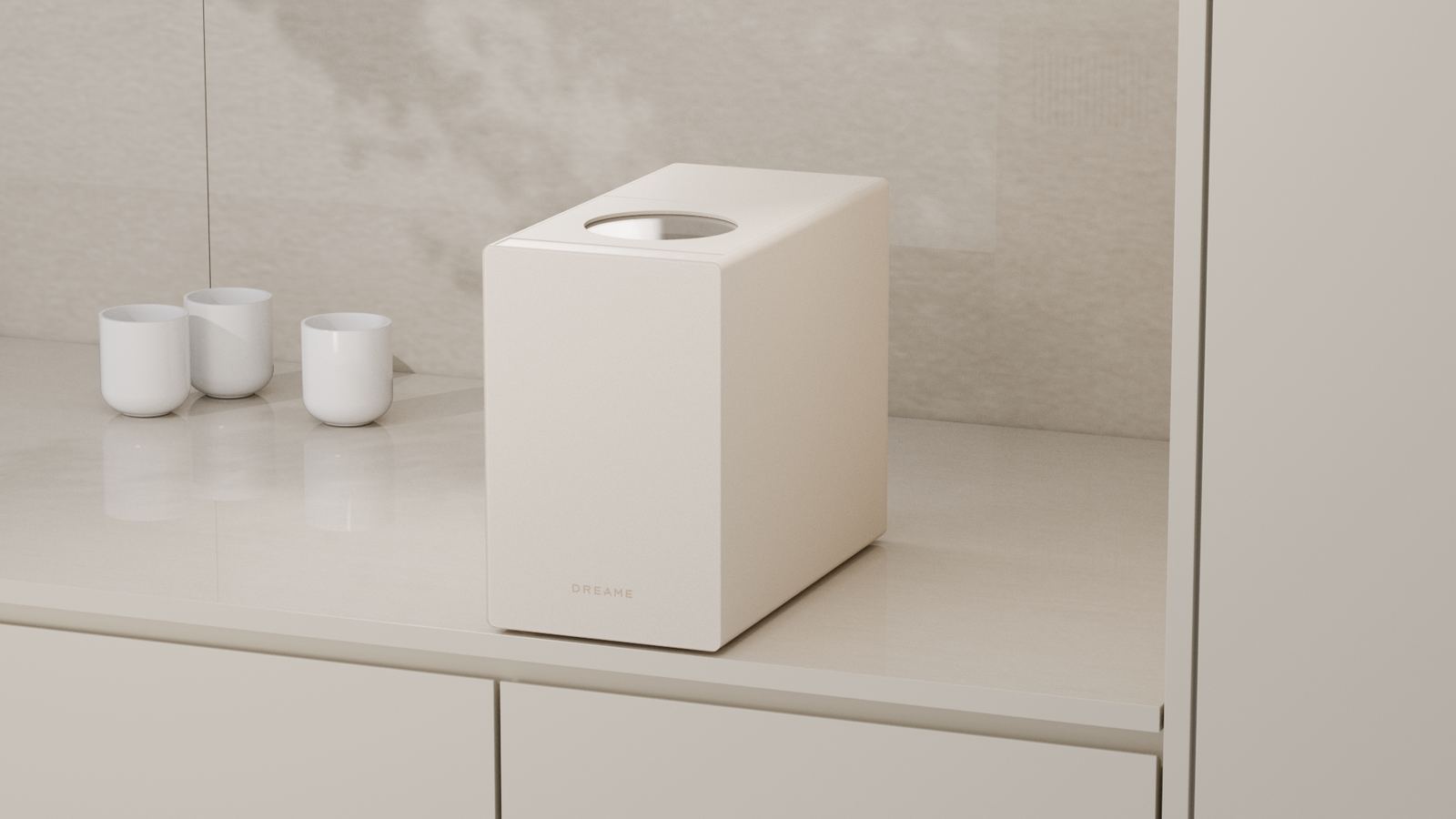

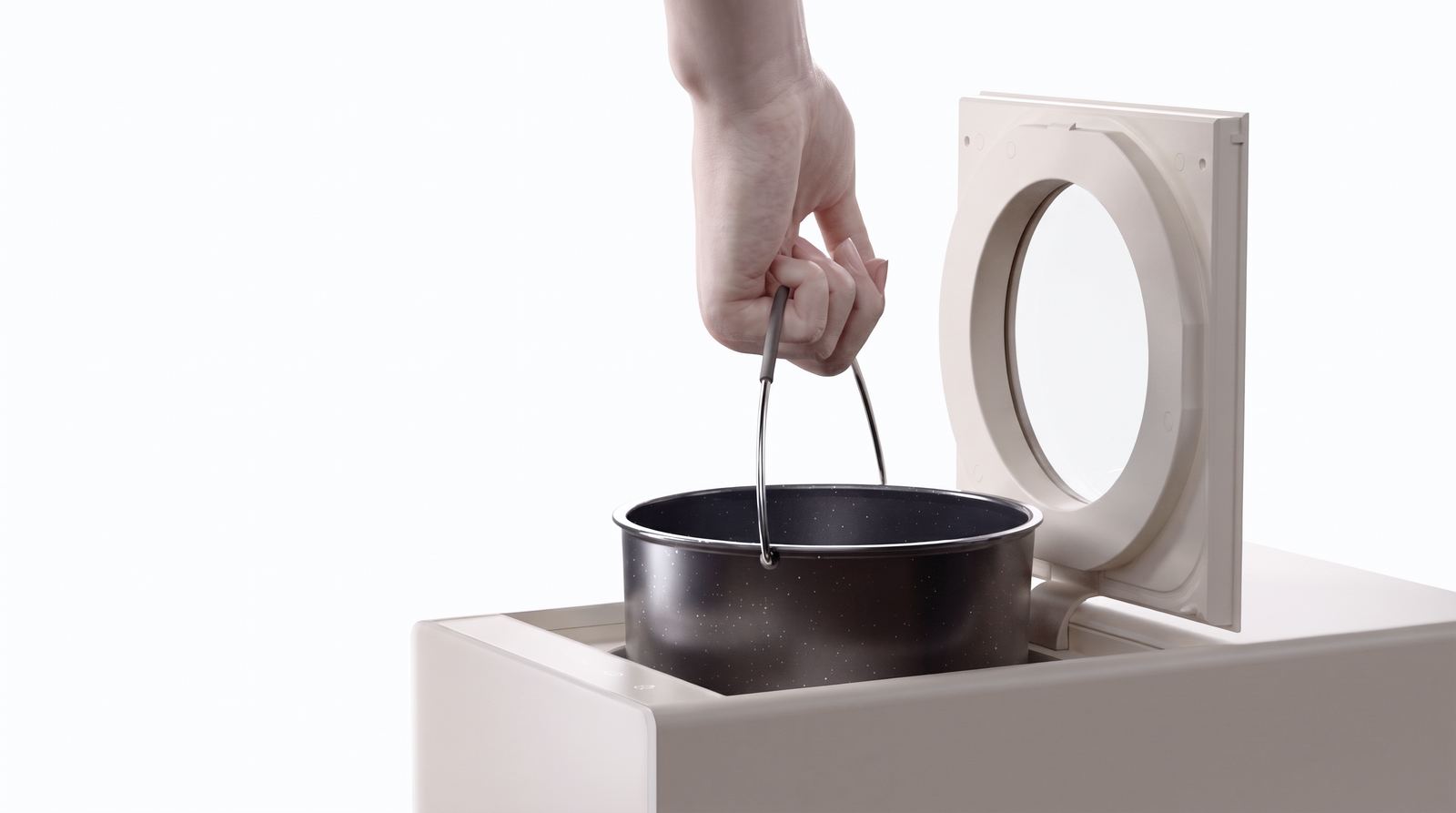

형태 — 주방의 수납장과 가전은 직선으로 맞물립니다. 원통 내솥 둘레에 빈 공간을 감수하고, 직사각형을 택했습니다.Form — Korean kitchens meet in straight lines. I accepted dead space around the cylindrical bucket and chose a rectangular body.

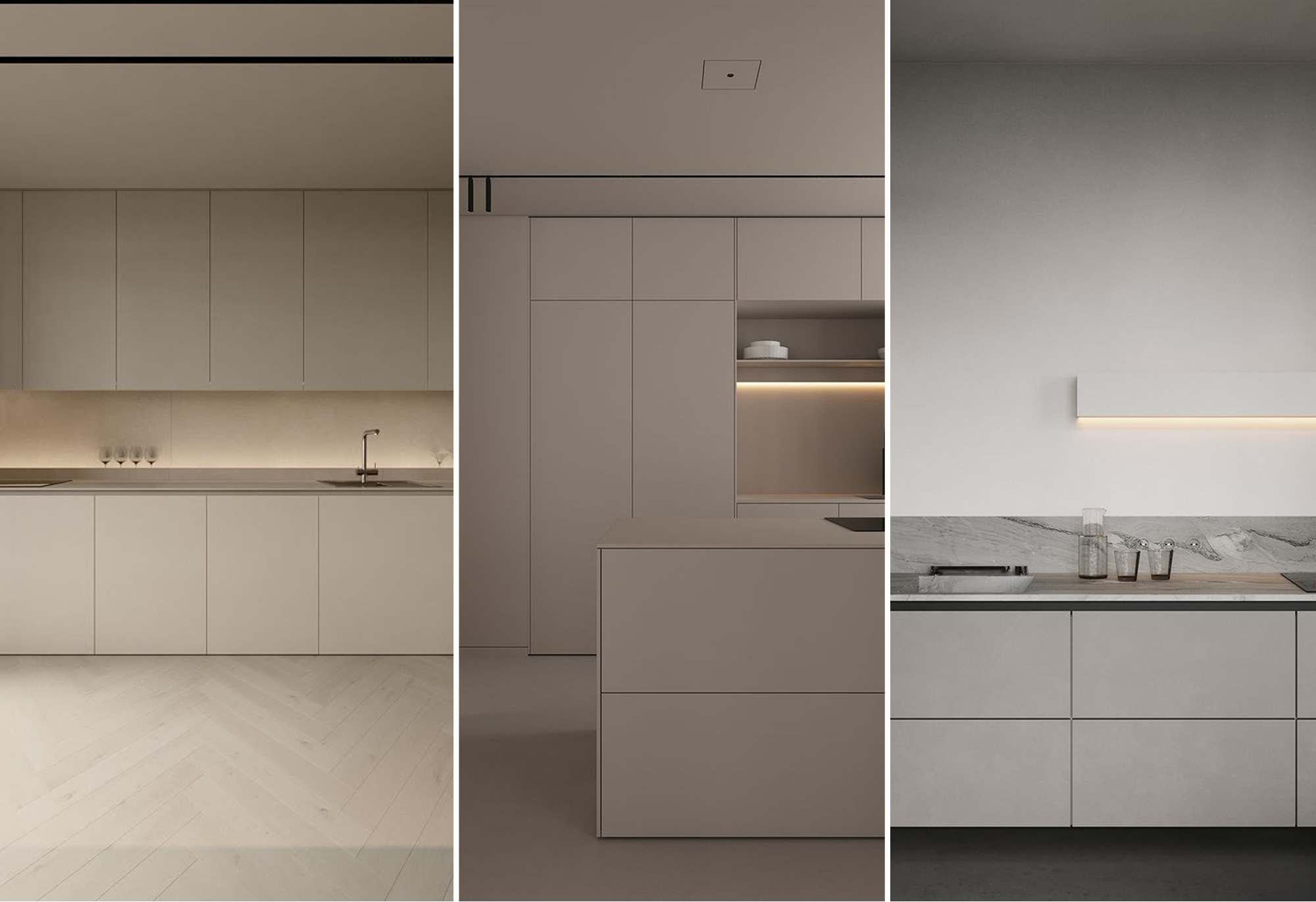

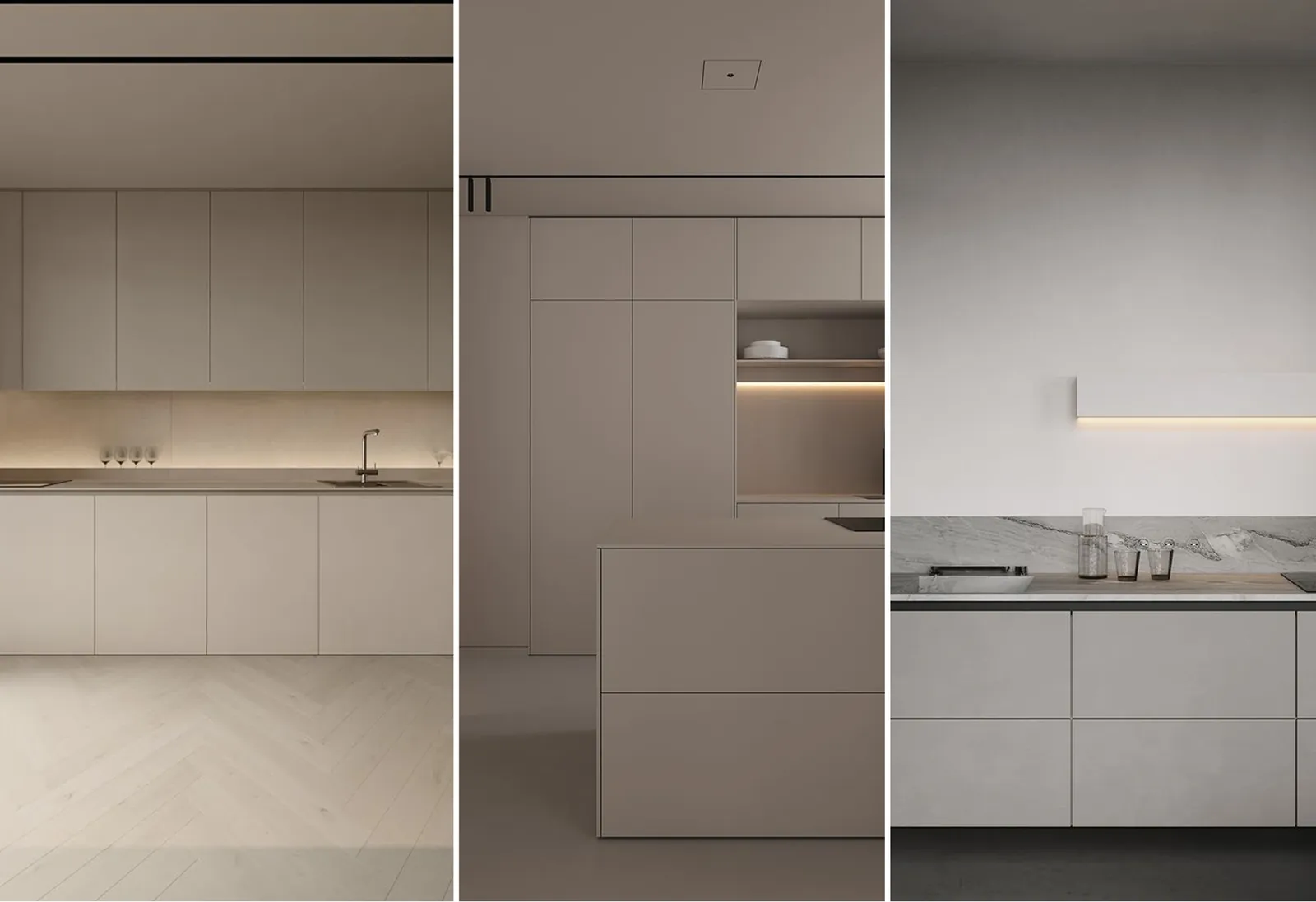

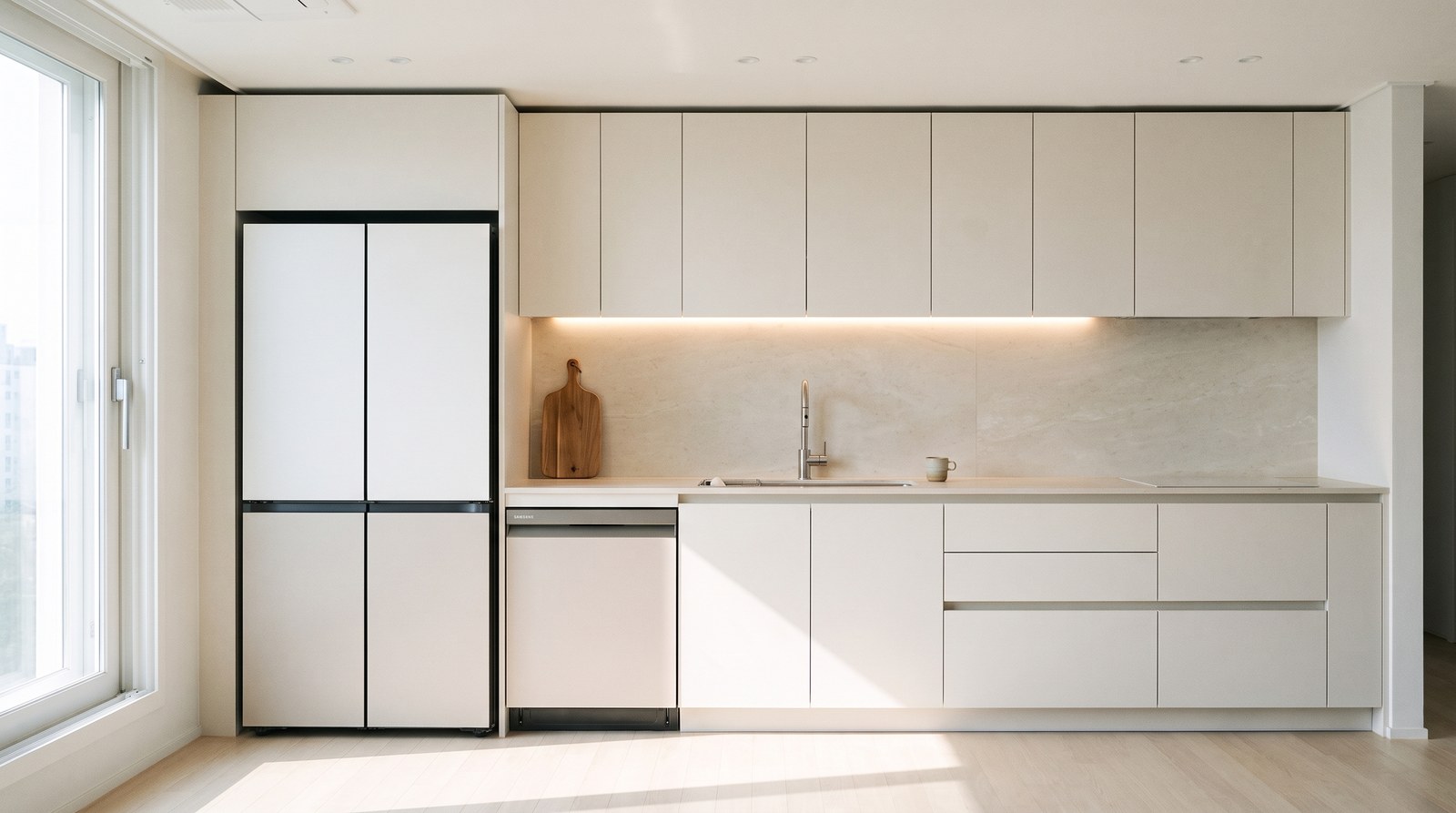

한국 주방 — 수납장·싱크대·가전이 전부 직선으로 만나는 공간Korean kitchen — cabinets, sink and appliances all meet in straight lines

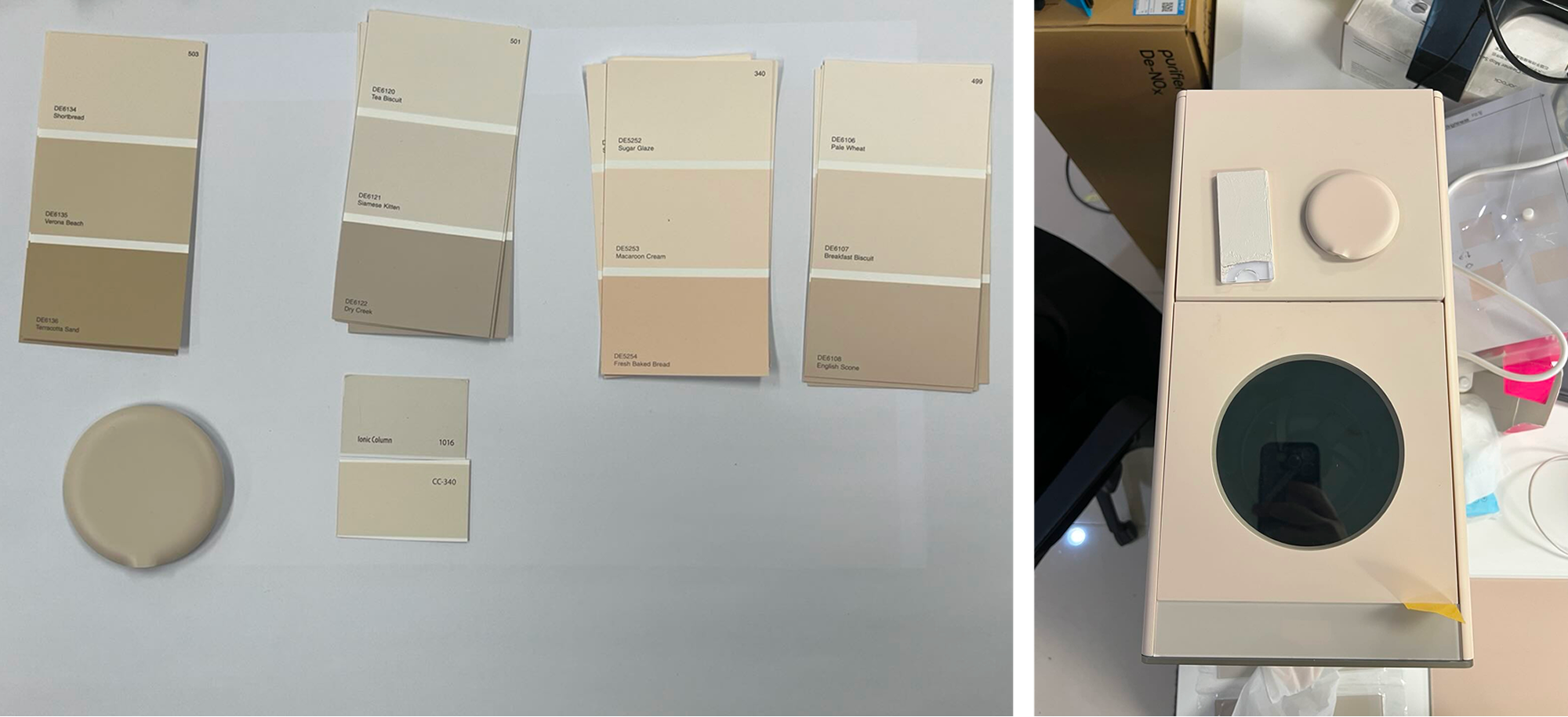

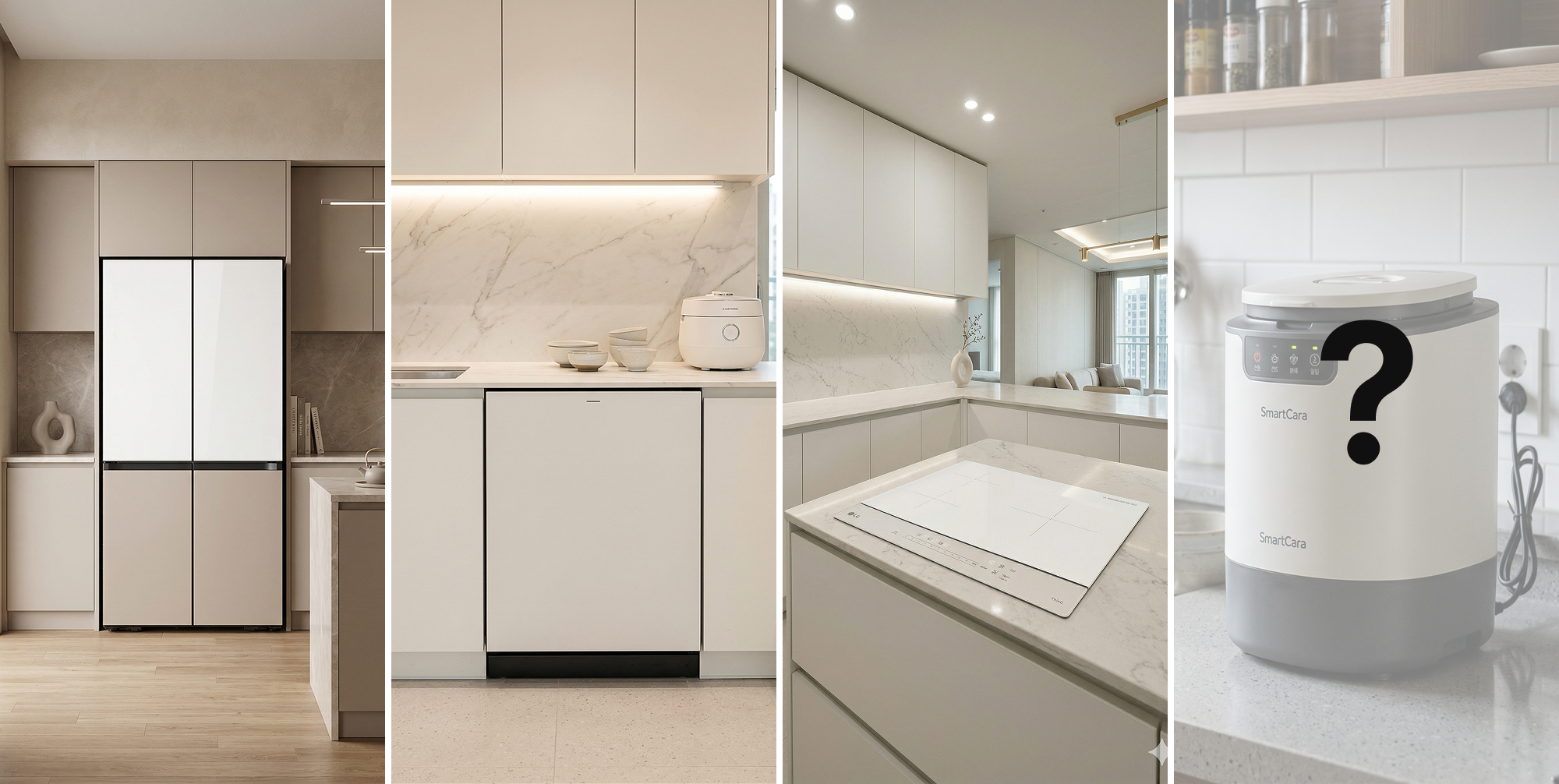

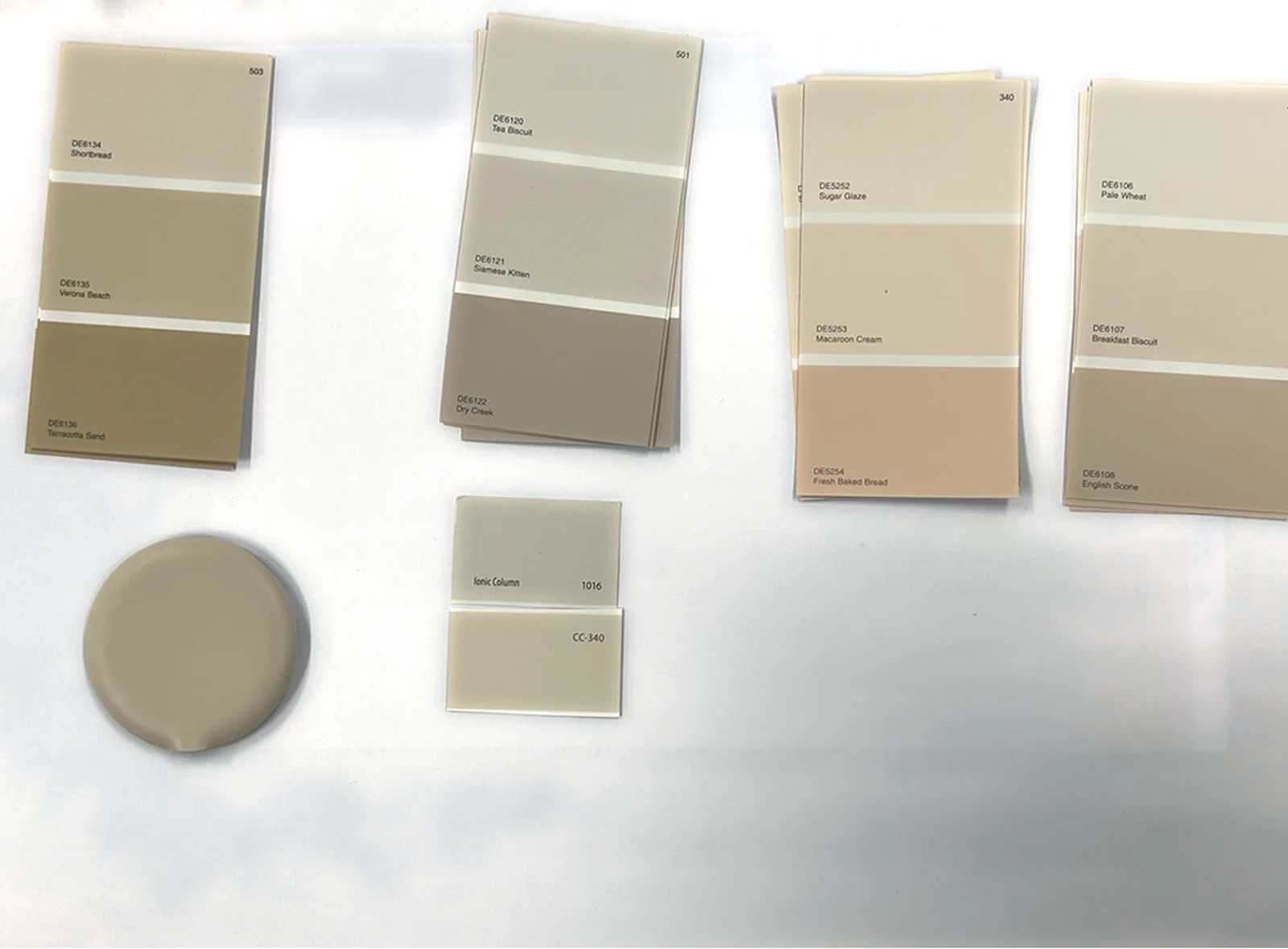

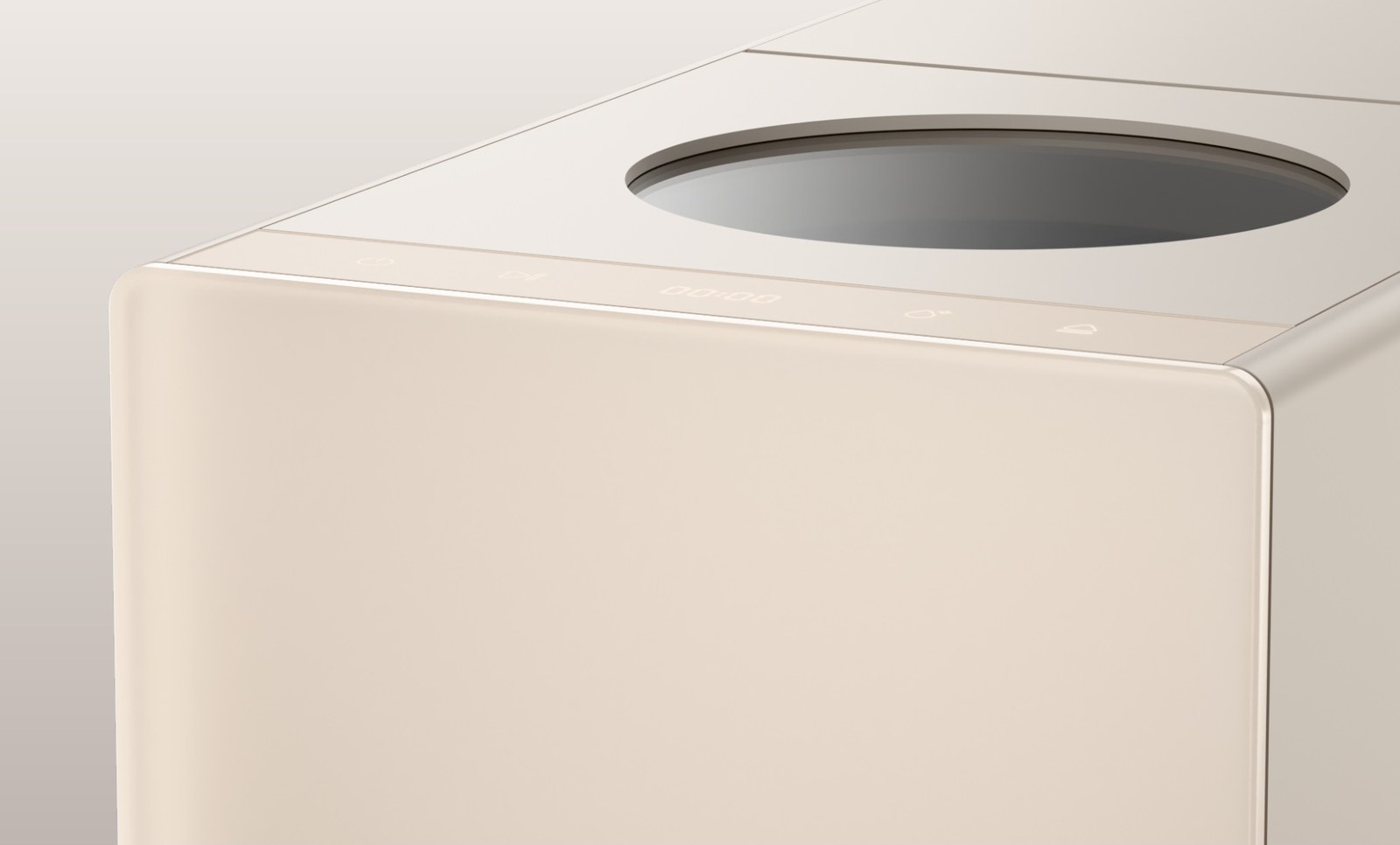

소재 — 현대 주방 가전들은 이미 유리로 얼굴을 맞추고 있습니다. 그래서 유리 패널을 차별화 소재로 제안했고, 매우 긍정적으로 받아들여졌습니다.Material — premium kitchen appliances already share one face: glass. Proposing a glass panel as the differentiator was received well.

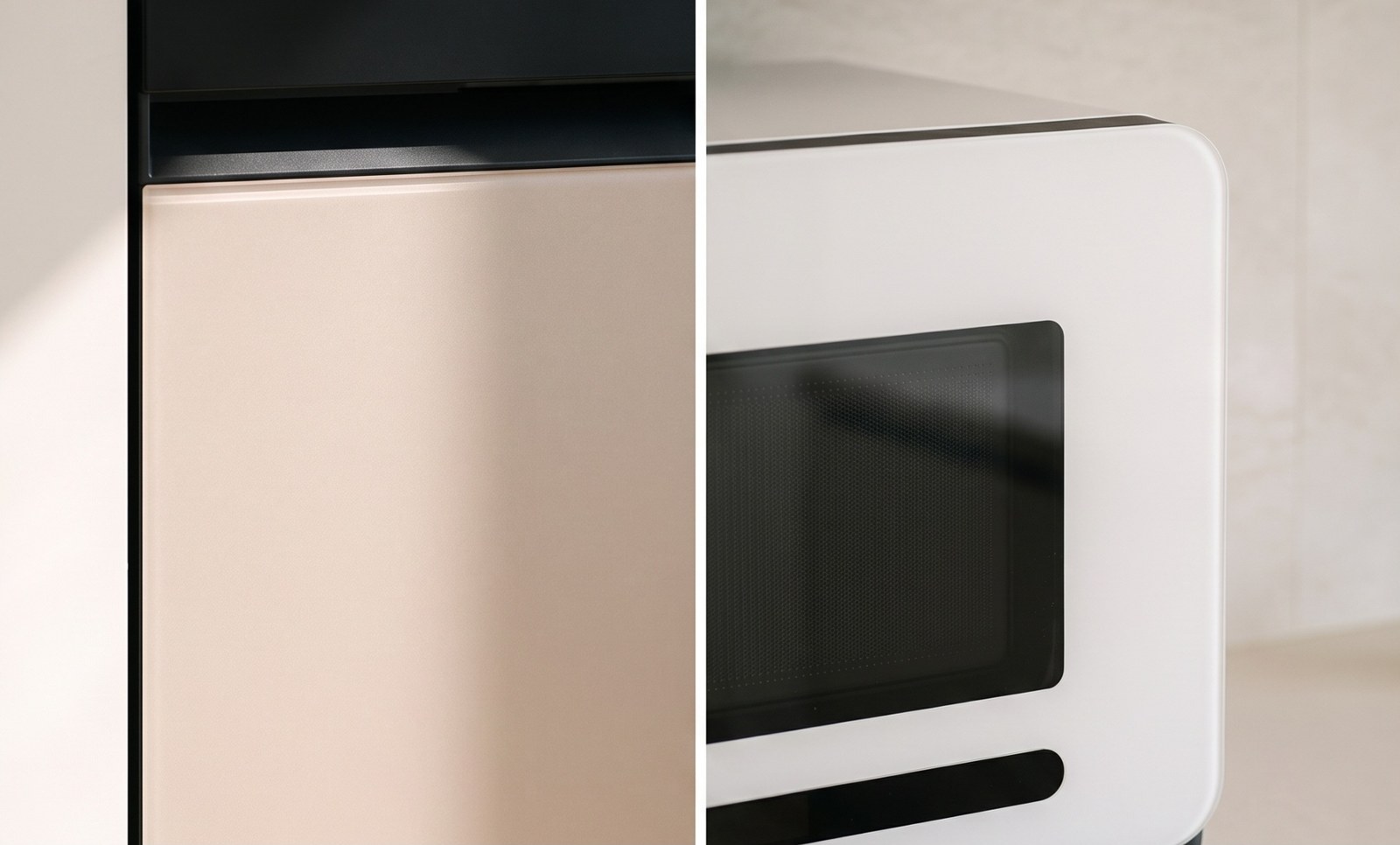

현대 주방 가전의 유리 사용 예시Glass already used across premium kitchen appliances

구조Structure

냄새가 새는 길Where the smell escaped

양산 중 유통사에서 냄새가 샌다는 의견이 들어왔습니다. 유입부터 배출까지 공기 경로를 그려 놓고, 워킹 목업을 구간별로 막아가며 위치를 좁혔습니다.
원인은 두 가지였습니다. 배기 타공 위치와 연결부 스펀지 패킹.
수정안을 냈고, 엔지니어가 수치를 확정해 양산에 반영됐습니다.

During production the distributor reported a smell leak. I drew the air path from intake to exhaust and blocked the working mock-up section by section until the source was found — two of them. I proposed the fixes; the engineer set the final numbers and they went into production.

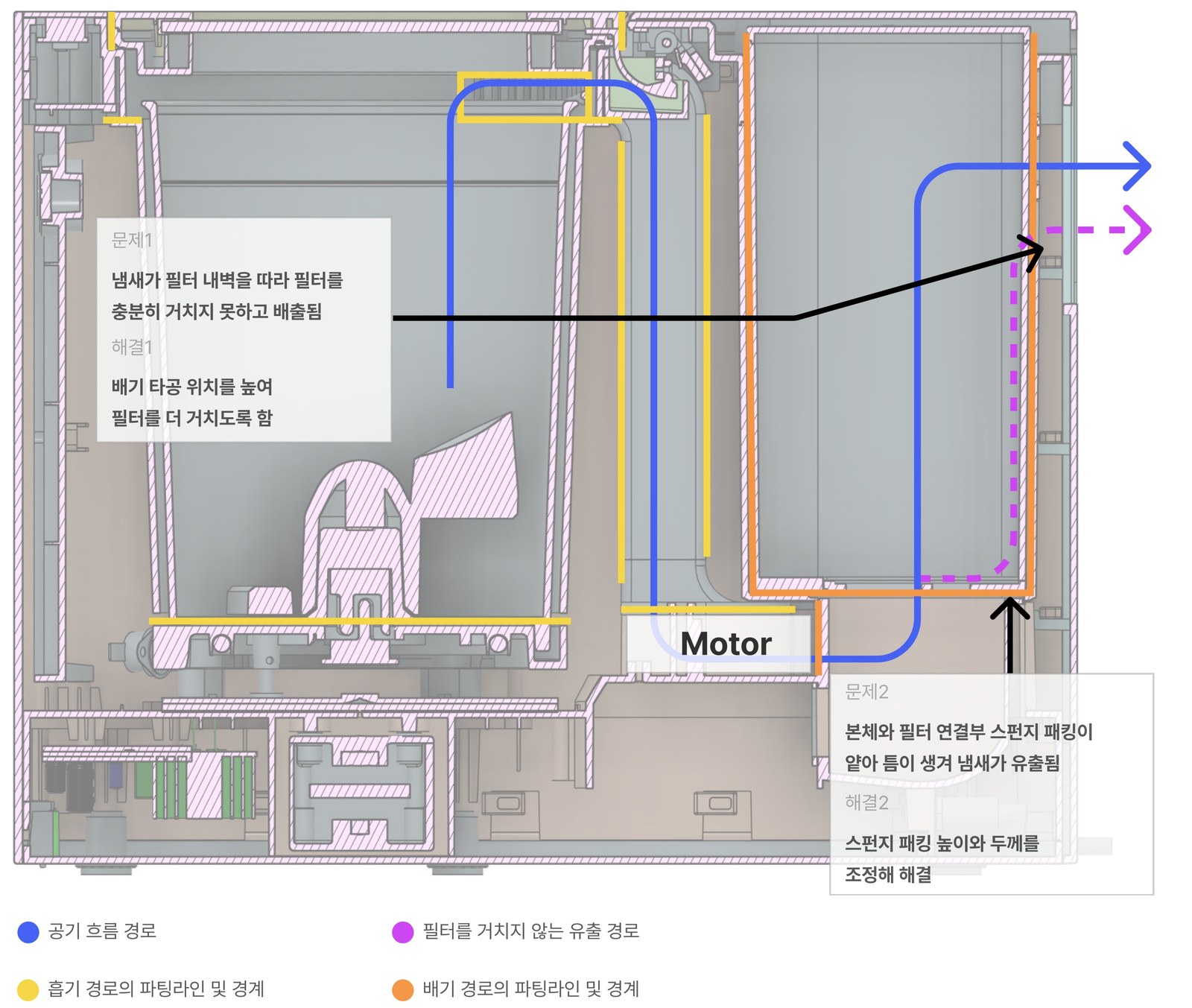

공기 흐름 경로 — 흡기·배기 파팅라인과 필터를 거치지 않는 유출 경로Air path — intake, exhaust and the route that bypassed the filter

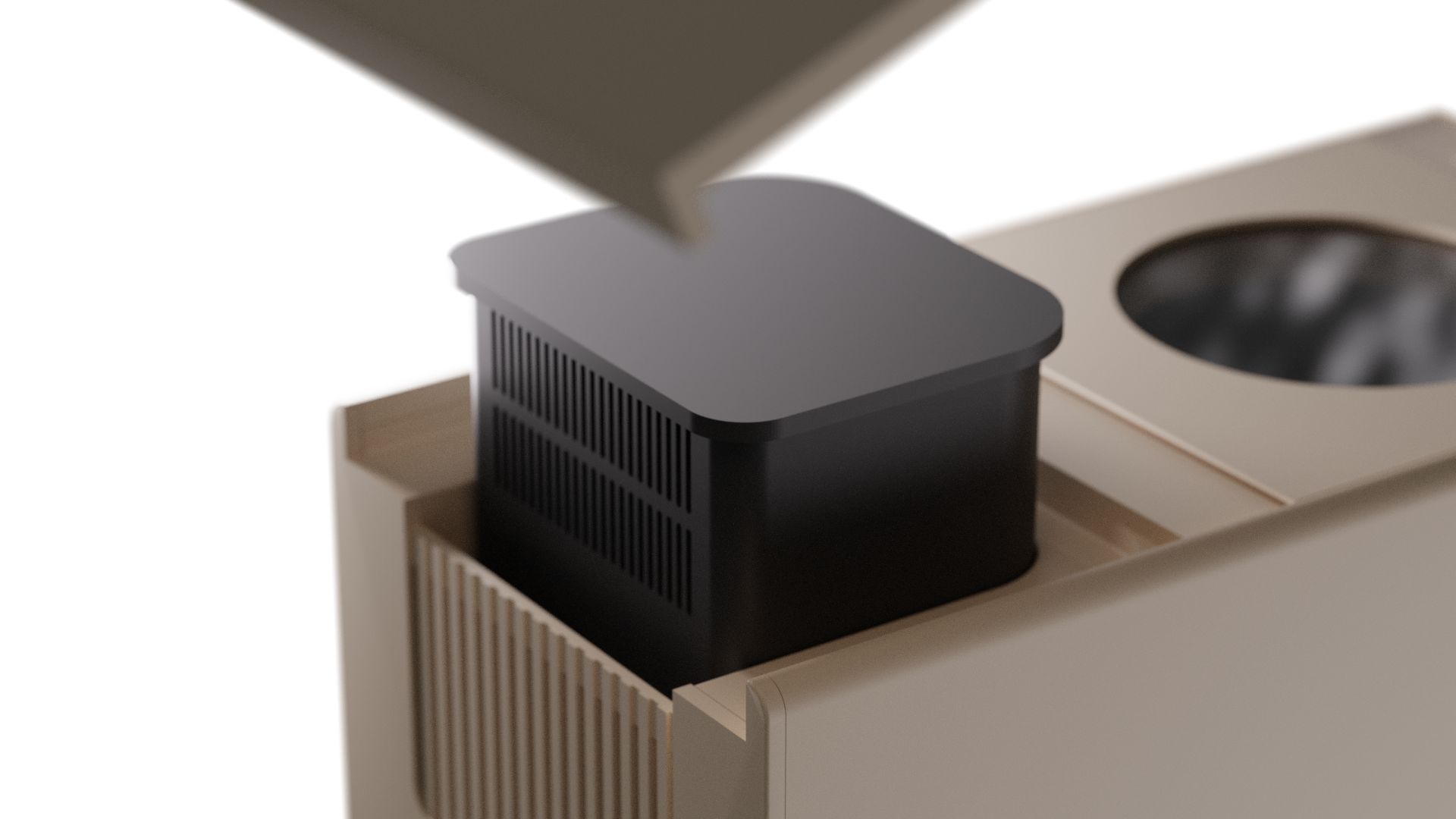

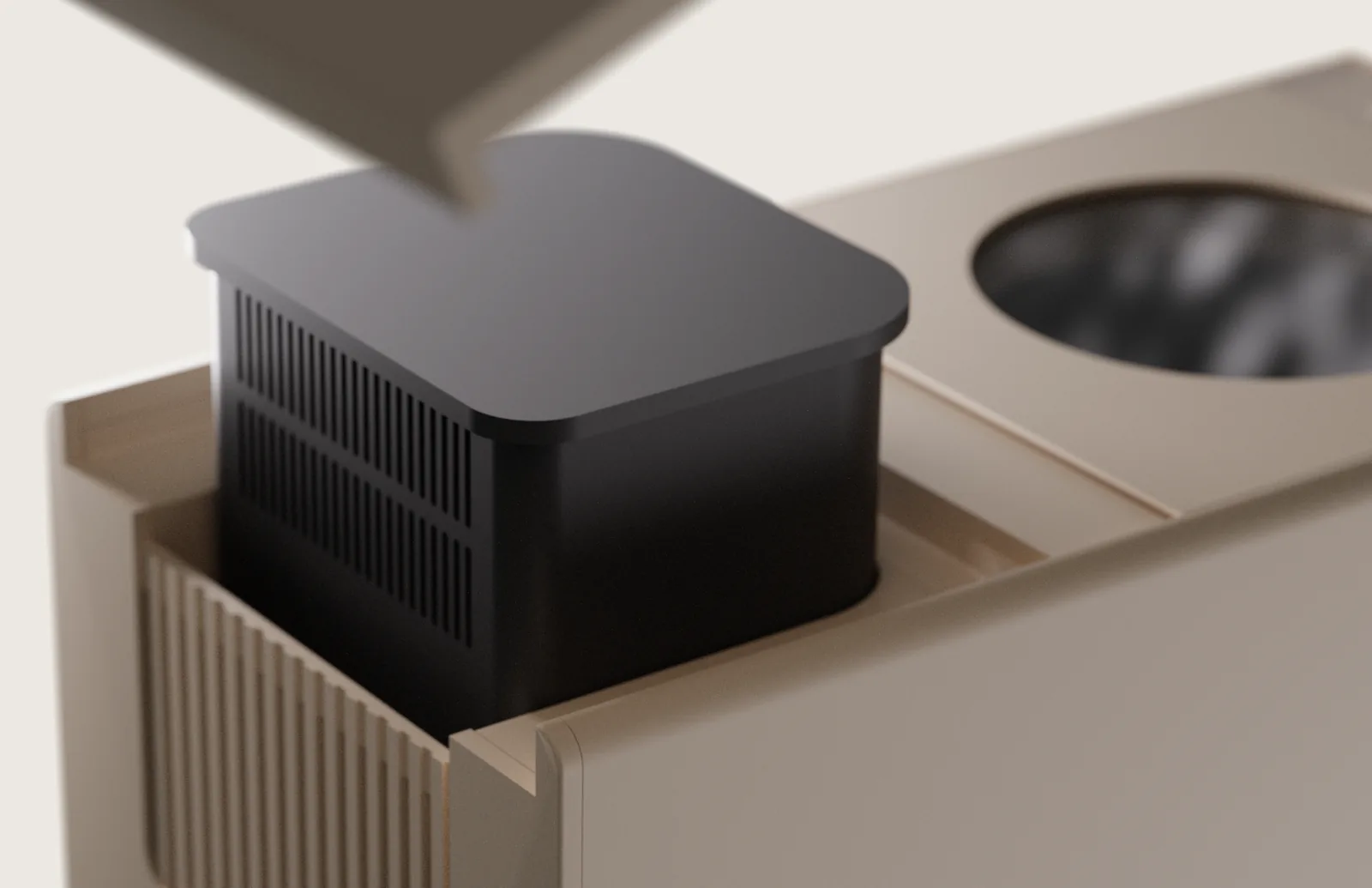

필터와 본체 연결부The filter and its joint with the body

패키지Package

누구보다 쉽게 꺼내세요The easiest box to open

상부 개봉 상자는 제품을 잡을 데가 없어 꺼내기 어려웠습니다.
전면이 통째로 열리는 구조로 바꿔, 들어 올리지 않고 그대로 빼내게 했습니다.
목업으로 확인한 뒤 인쇄 감리를 거쳐 그대로 양산됐습니다.

A top-opening box gives you nothing to hold. I changed it to a front-opening structure so the product slides out instead of being lifted — verified with a mock-up, checked on press, and shipped that way.

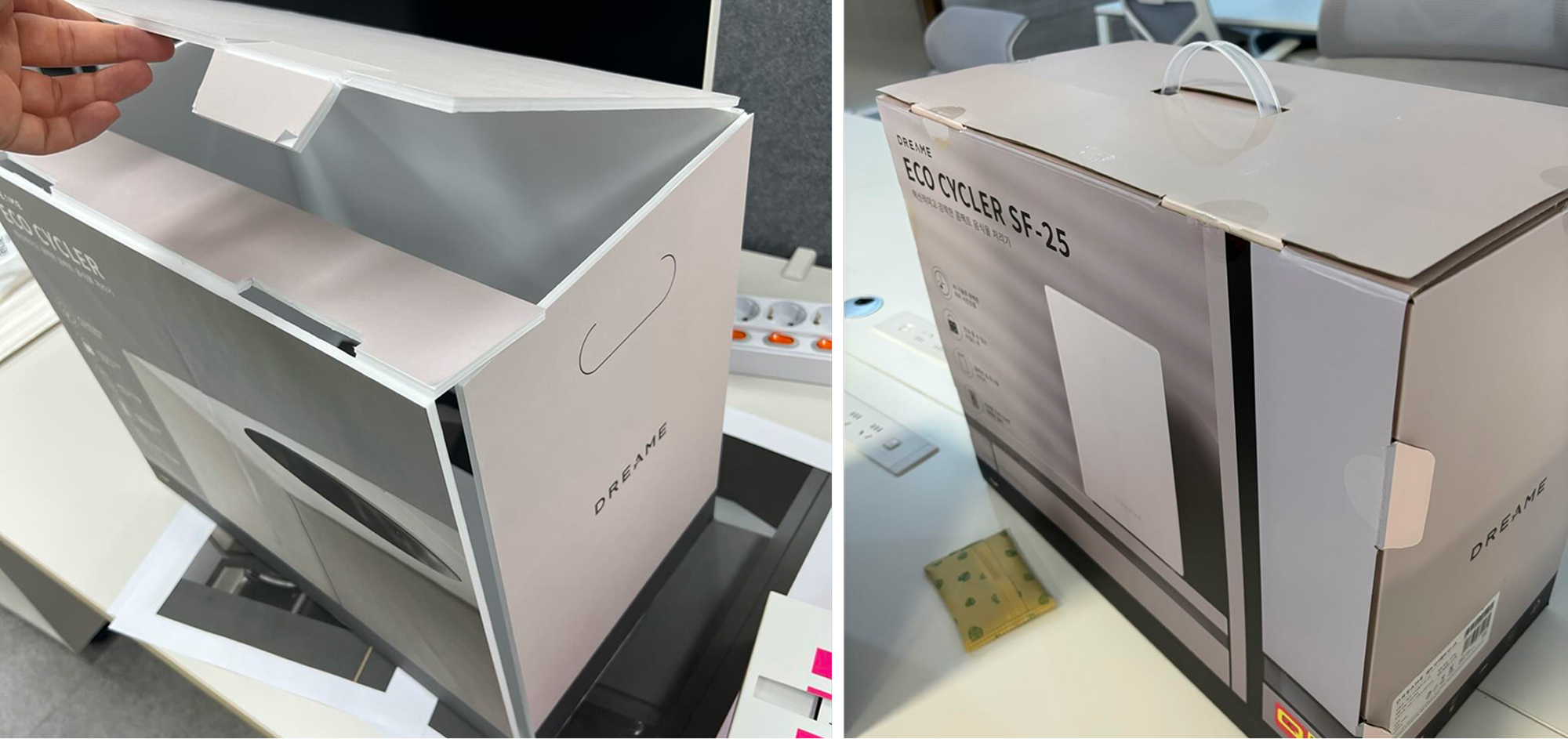

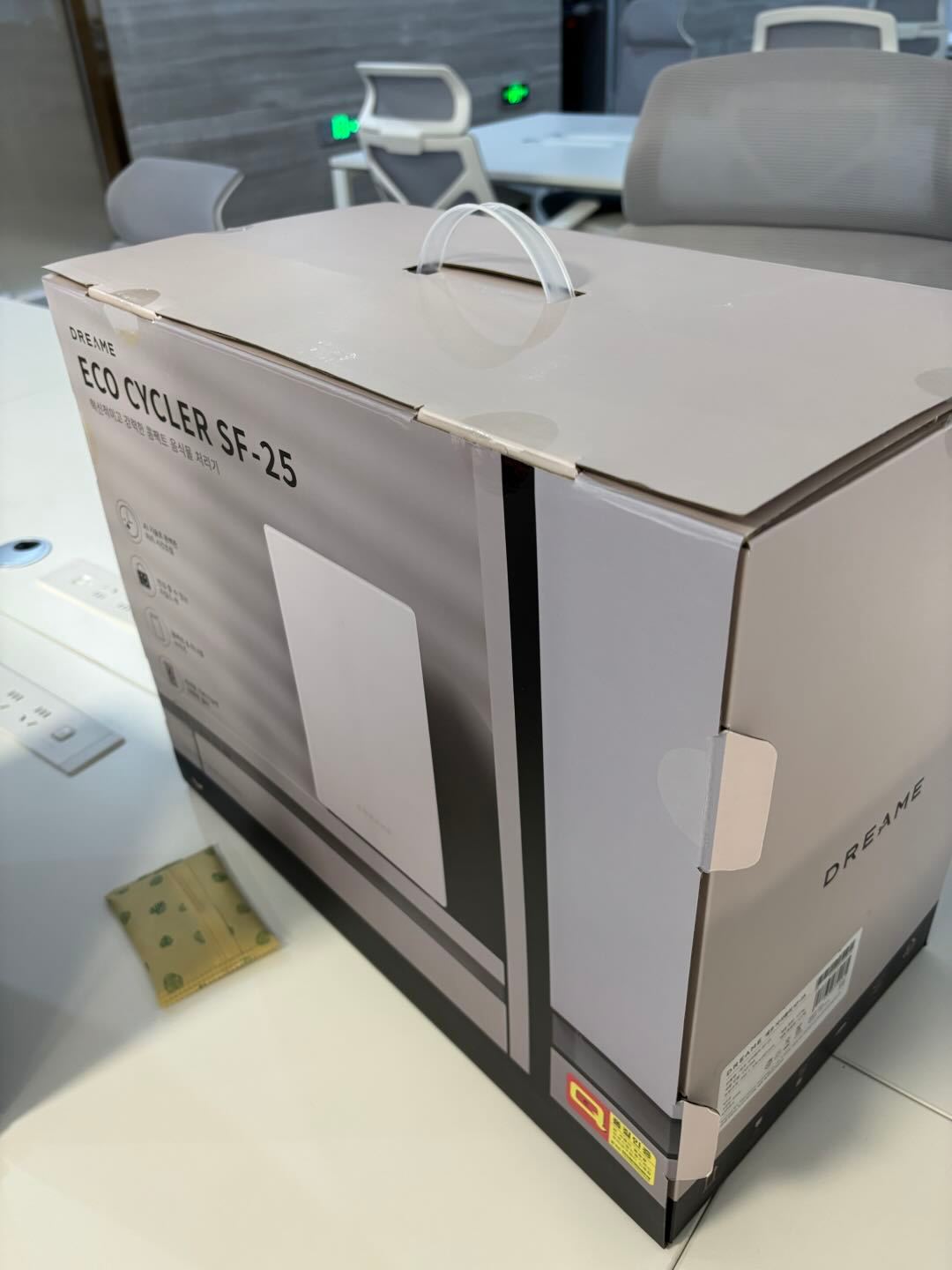

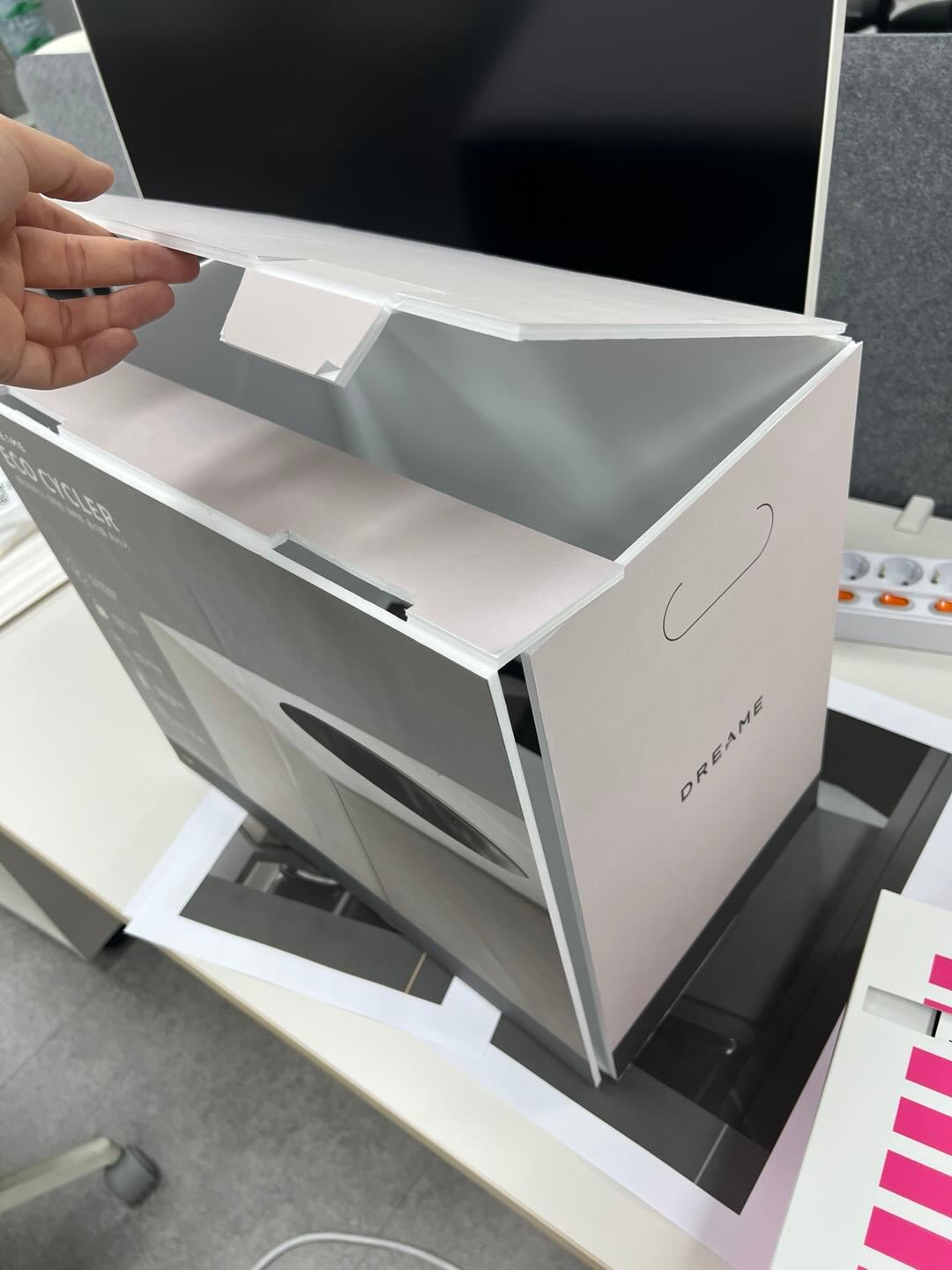

패키지 목업Package mock-up

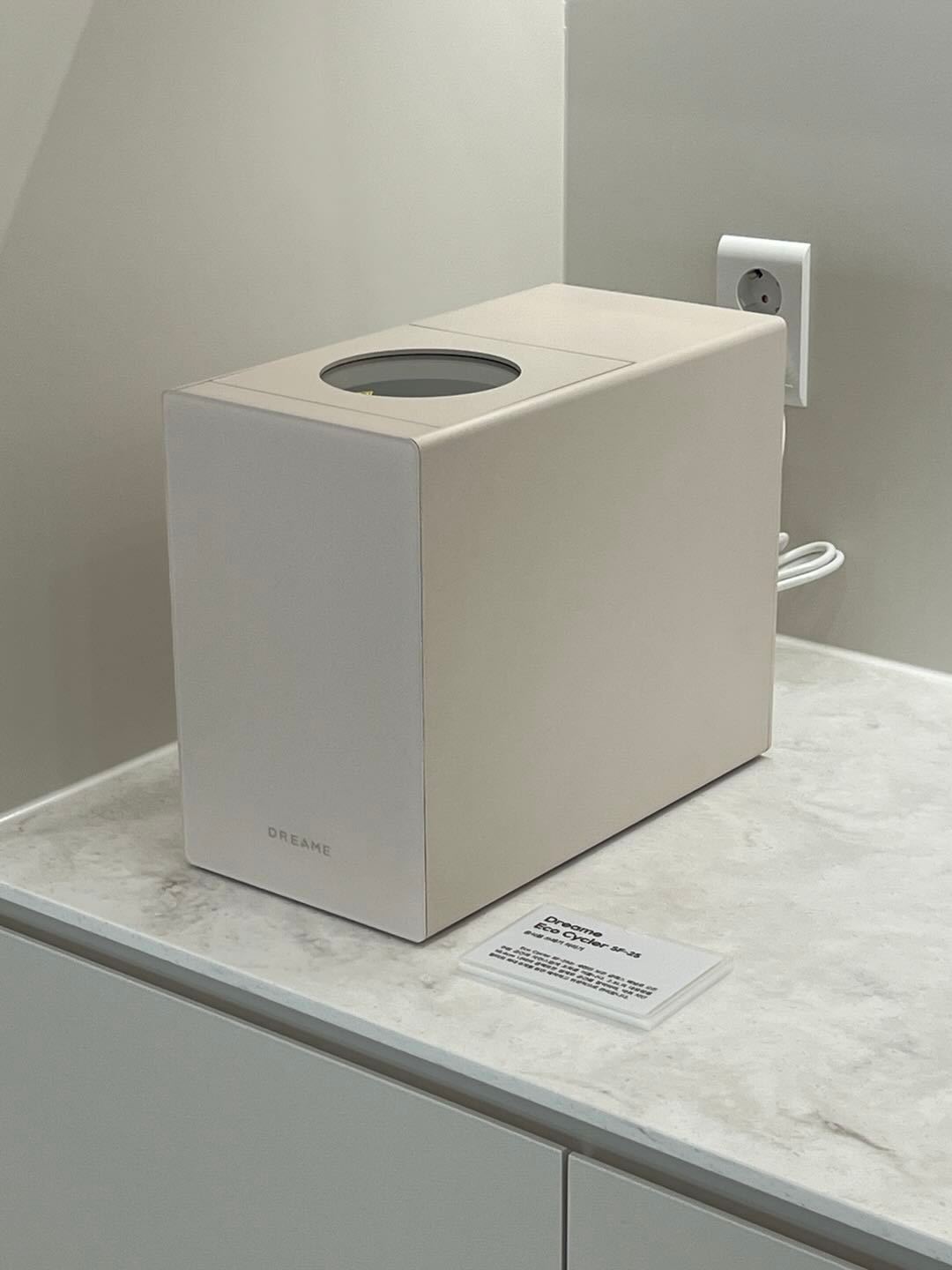

양산 프로토타입Production prototype

성과Outcome

첫 제안 그대로 양산됐습니다Shipped as first proposed

양산Production
첫 제안 그대로 양산 확정 · 2025.06 한국 출시 · 2026.05 유럽 런칭Confirmed for production on the first proposal — Korea June 2025, Europe May 2026
판매Market
독일·이탈리아 아마존 음식물 분쇄기 카테고리 1위 · 프랑스 5위 (2026.05)Amazon #1 in Food Waste Disposers, Germany & Italy · #5 France (May 2026)
맡은 범위Scope
디자인 방향 · CMF · 상태 UX · 인증 대응 · 패키지 · 양산 F/UDesign direction · CMF · status UX · certification · package · production follow-up
